Цена по запросу
Authentication Method
RADIUS, TACACS+Capacity
Virtual interfaces (VLANs): 4096 ¦ Longest prefix match (LPM) entries (IPv4): 1300000 ¦ Longest prefix match (LPM) entries (IPv6): 1300000 ¦ Multicast routes: 768000Device Type

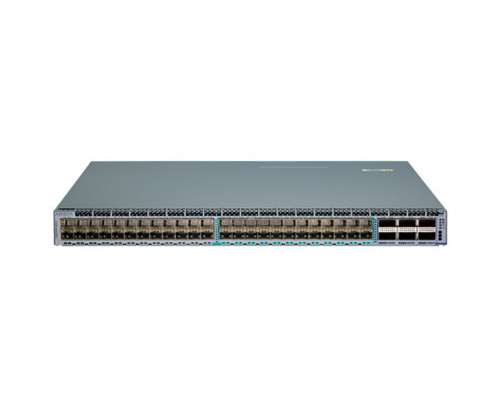

Switch - 48 ports - L3 - managedТехнические характеристики HPE Arista 7280R2 JQ410A
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 24 x 25 Gigabit SFP + 24 x 10 Gigabit SFP+ + 6 x 100 Gigabit QSFP |
| Performance | Throughput: 3.6 Tbps ¦ Switching capacity: 1.6 Bpps ¦ Latency: 3.8 µs |
| Capacity | Virtual interfaces (VLANs): 4096 ¦ Longest prefix match (LPM) entries (IPv4): 1300000 ¦ Longest prefix match (LPM) entries (IPv6): 1300000 ¦ Multicast routes: 768000 |
| MAC Address Table Size | 768K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-2, BGP, IGMPv2, VRRP, PIM-SM, static IP routing, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, ECMP, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Authentication Method | RADIUS, TACACS+ |
| Processor | 1 |
| RAM | 32 GB |
| Flash Memory | 4 GB |
| Interfaces | 1 x management (Gigabit LAN) RJ-45 ¦ 1 x management (RS-232) RJ-45 ¦ 24 x 25Gbit LAN SFP ¦ 6 x 100Gbit LAN QSFP ¦ 2 x USB ¦ 24 x 10Gbit LAN SFP+ |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Provided | 747 Watt |
| Power Redundancy Scheme | 1+1 |
Характеристики
Authentication Method
RADIUS, TACACS+
Capacity
Virtual interfaces (VLANs): 4096 ¦ Longest prefix match (LPM) entries (IPv4): 1300000 ¦ Longest prefix match (LPM) entries (IPv6): 1300000 ¦ Multicast routes: 768000
Device Type
Switch - 48 ports - L3 - managed
Enclosure Type
Rack-mountable 1U
Flash Memory
4 GB
Installed Qty
2 (installed) / 2 (max)
Interfaces
1 x management (Gigabit LAN) RJ-45 ¦ 1 x management (RS-232) RJ-45 ¦ 24 x 25Gbit LAN SFP ¦ 6 x 100Gbit LAN QSFP ¦ 2 x USB ¦ 24 x 10Gbit LAN SFP+
Jumbo Frame Support
9216 bytes
MAC Address Table Size
768K entries
Performance
Throughput: 3.6 Tbps ¦ Switching capacity: 1.6 Bpps ¦ Latency: 3.8 µs
Ports
24 x 25 Gigabit SFP + 24 x 10 Gigabit SFP+ + 6 x 100 Gigabit QSFP
Power Device
Internal power supply - hot-plug
Power Provided
747 Watt
Power Redundancy Scheme
1+1
Processor
1
RAM
32 GB
Remote Management Protocol
SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Routing Protocol
OSPF, IS-IS, RIP-2, BGP, IGMPv2, VRRP, PIM-SM, static IP routing, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, ECMP, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD)
Subtype
100 Gigabit Ethernet
